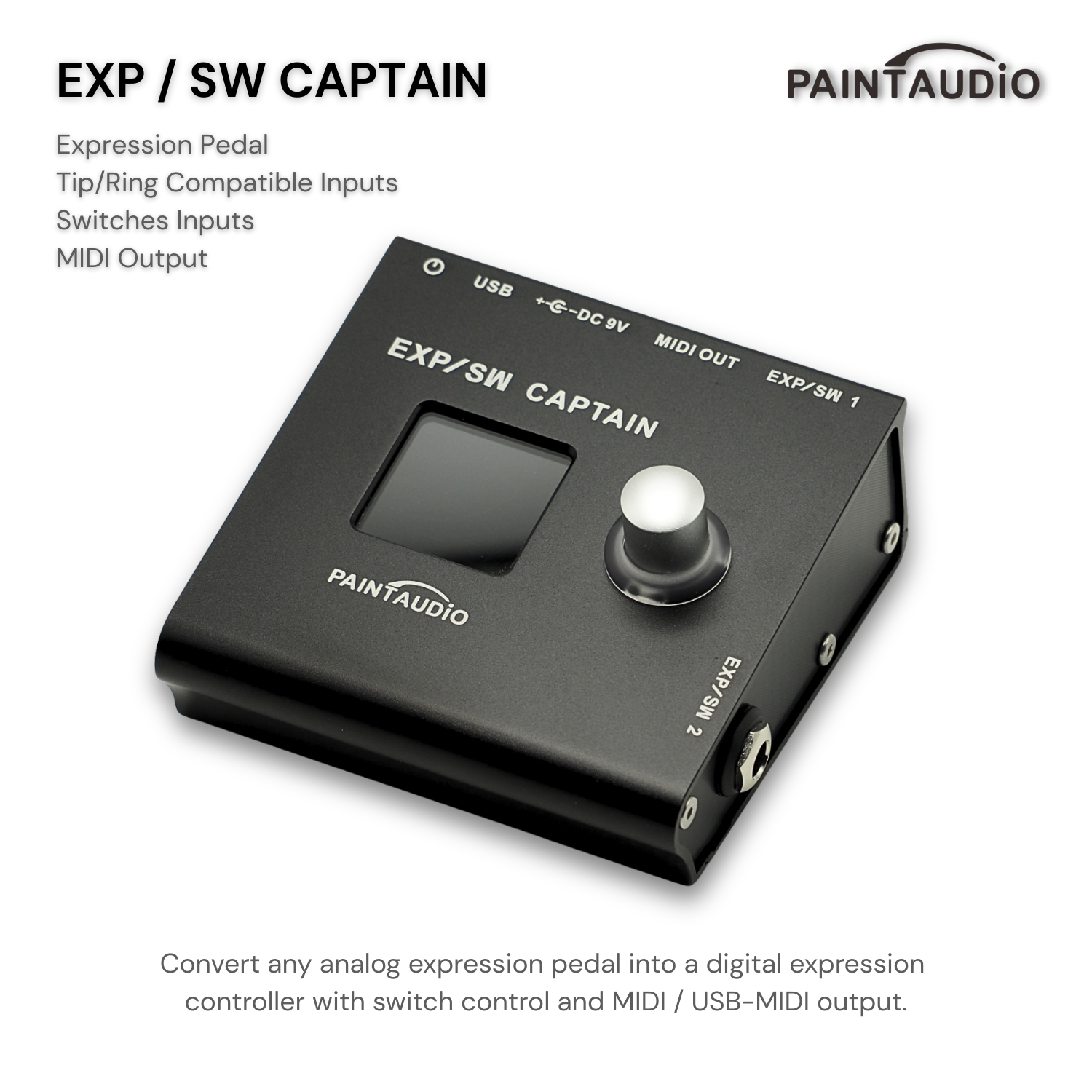

EXP/SW CAPTIAN Multi-Function Expression Pedal & Footswitch to MIDI Controller Box
EXP/SW CAPTIAN Multi-Function Expression Pedal & Footswitch to MIDI Controller Box
Couldn't load pickup availability
【Covert Analog Expression Pedals into Digital MIDI Expression Controllers】Works with any third-party expression pedal (we recommend PaintAudio's own FootCaption series) to convert expression control into MIDI CC messages, enabling parameter control over any MIDI-compatible effects processor or audio device.
【Supports a Variety of External Control Inputs】Accepts standard expression pedals, expression pedals with switch outputs, or any 1-button or 2-button footswitch. Both input channels support expression or switch input and can be freely combined.
【USB-MIDI Capability】The converter box supports USB-MIDI functionality, allowing signals from external expression pedals and switches to be converted into MIDI control signals and sent via USB-MIDI to computer or mobile device audio software for parameter control.
【Compatible with Various Expression Pedal Modes】Configurable to support typical Tip-output or Ring-output expression pedals, making it compatible with almost all third-party expression pedals on the market.
【Enables Combined Expression and Switch Control】By connecting both the expression output and switch output of an expression pedal with a built-in switch to this converter, you can simultaneously control bypass switching and parameter adjustments for wah modules in multi-effects processors or software effects.
【Sturdy Metal Housing and Compact Size】Compact dimensions: 99x97x51 mm, lightweight at 255 g, and built with a robust metal casing.
【All Settings Can Be Configured On-Device】All features can be configured directly on the unit without the need for a computer or mobile device.

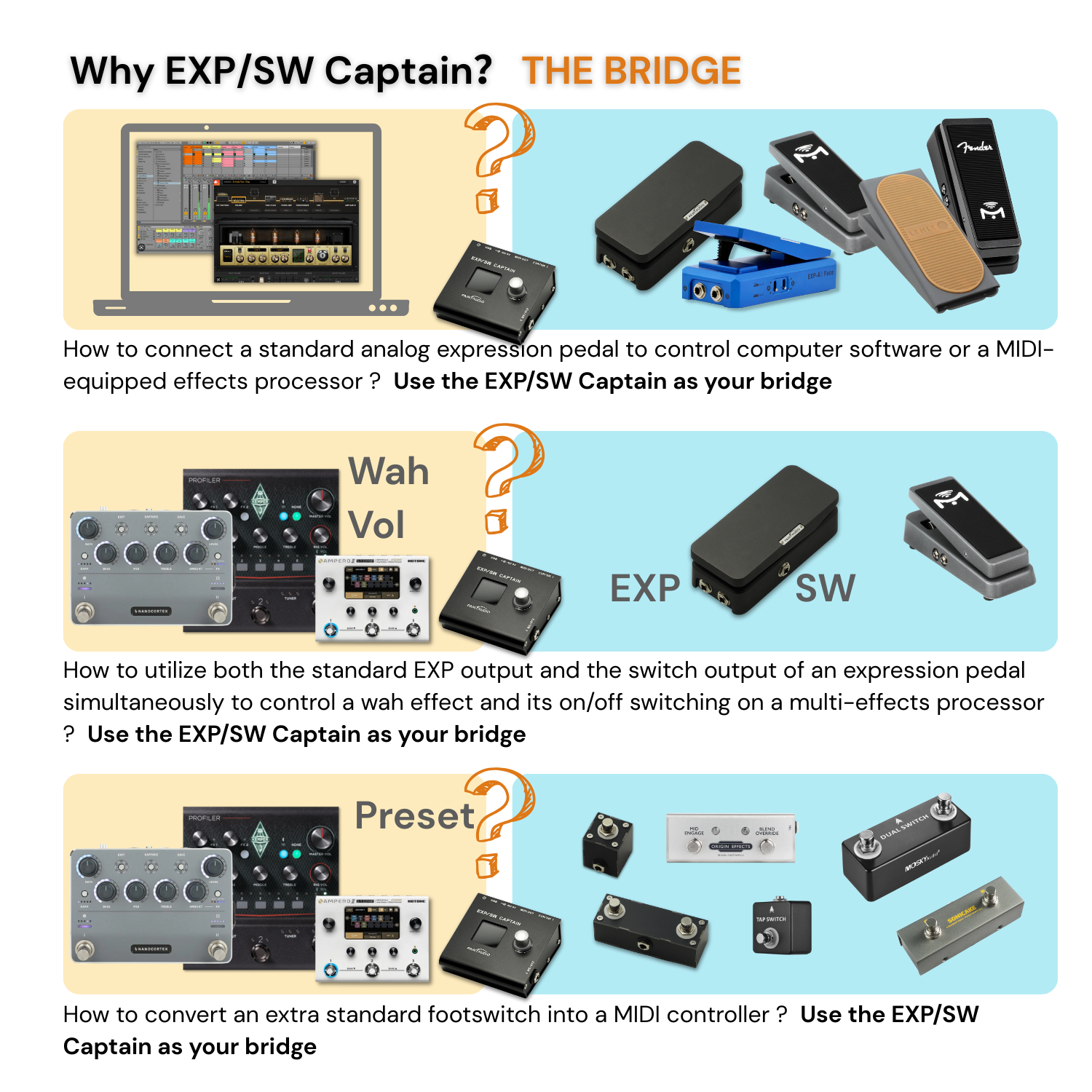

Convert Analog Expression Pedals into Digital MIDI
The converter box supports USB-MIDI functionality, allowing signals from external expression pedals and switches to be converted into MIDI control signals and sent via USB-MIDI to computer or mobile device audio software for parameter control.

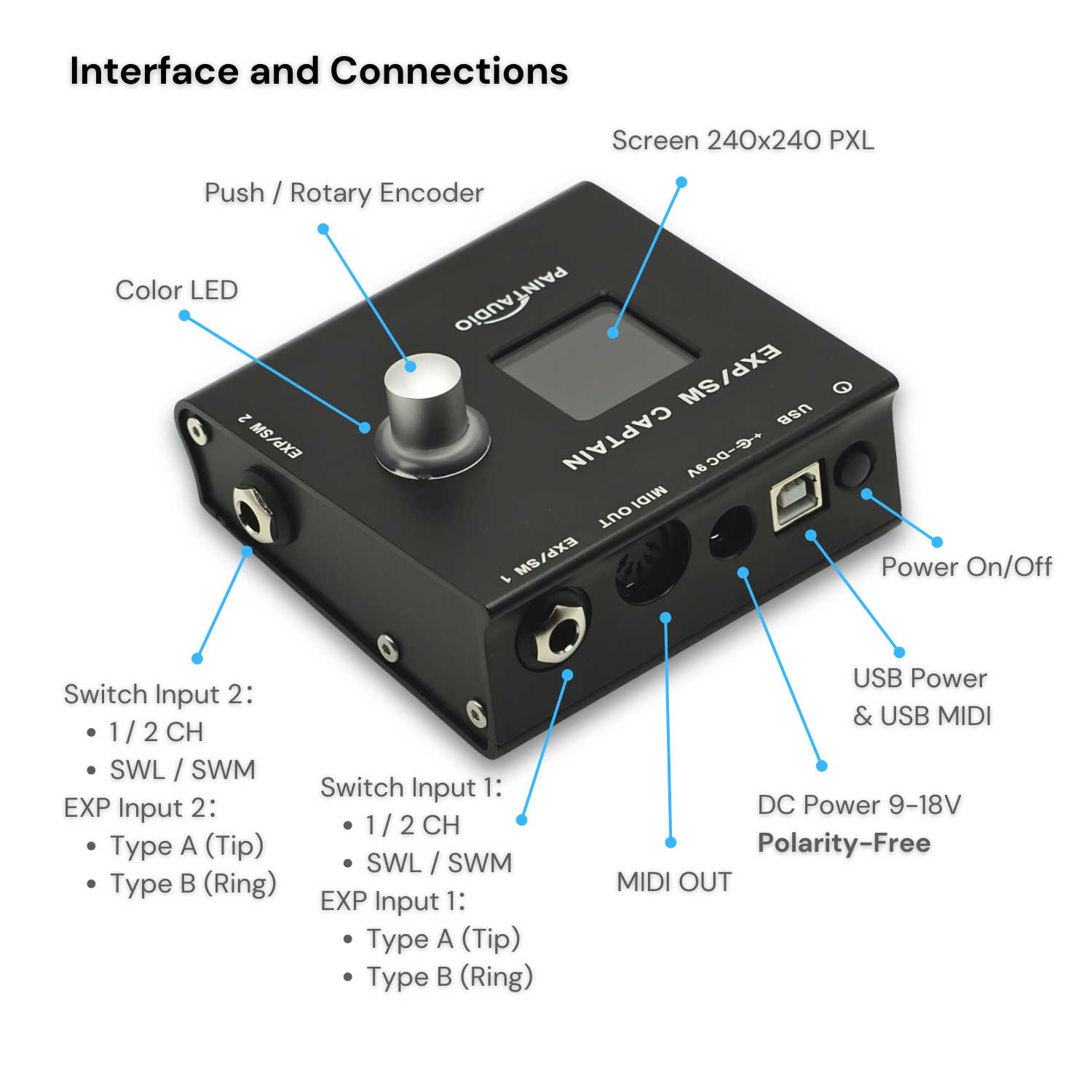

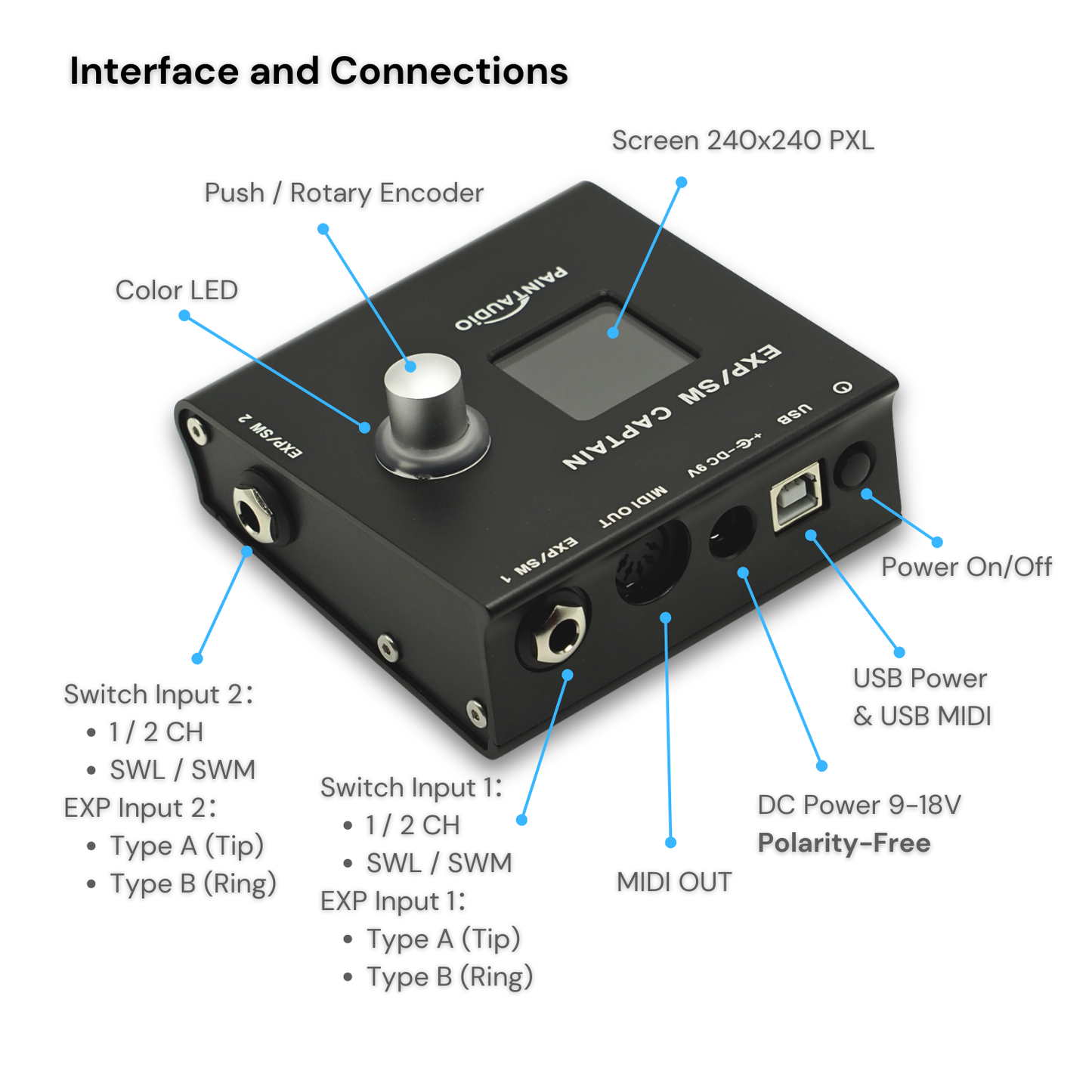

Supports a Variety of External Inputs
Accepts standard expression pedals, expression pedals with switch outputs, or any 1-button or 2-button footswitch.
Both input channels support expression or switch input and can be freely combined.
Enables Combined Expression and Switch Control
By connecting both the expression output and switch output of an expression pedal with a built-in switch to this converter, you can simultaneously control bypass switching and parameter adjustments for wah modules in multi-effects processors or software effects.
All Settings Can Be Configured On-Device
All features can be configured directly on the unit without the need for a computer or mobile device.
Sturdy Metal Housing and Compact Size
Compact dimensions: 99x97x51 mm, lightweignt at 225 g, and built with a robust metal casing.
Manual
Here you can download the PDF version of the latest manual.The physical product you received may include an earlier version of the product manual. As we continuously update the firmware of the device, there may be instances where the manual descriptions differ from the actual operation of the device. We appreciate your understanding.
